HIGH QUALITY PARTS AND SOUND
Carefully selected high-quality components of audio grade are employed for the main circuit and greatly improved the tone quality. High-quality relays are placed close to the input terminal to realize the shortest signal path, and the mutual interference between equipments is eliminated by switching the hot / cold side of the signal simultaneously. Also the circuit constant has been looked over again in detail.
The balanced input via XLR terminal along with the custom-made double axis 4-gang volume controller enabled a full-balanced operation from input to sound element drive.
CLASS A AMPLIFICATION
Class-A all-stage DC amplifier circuit configuration eliminated coupling capacitors throughout the signal path. High-voltage dual triode 6FQ7 / 6CG7 are employed in the output stage, and the input stage features a simple two-stage amplification using low noise FET that are hand selected.

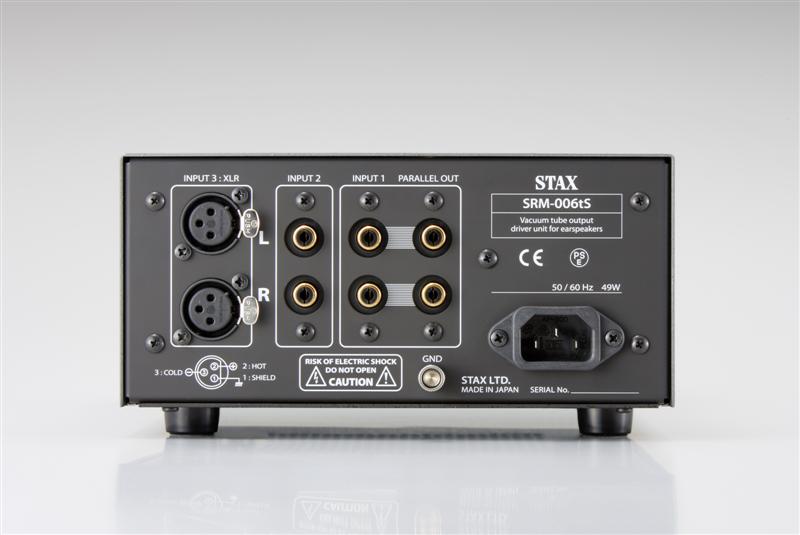

3 PAIRS OF INPUT TERMINALS
One stereo XLR input is equipped to connect directly to the XLR balanced output of a high-class CD/SACD player. Also, two pairs of RCA inputs enable the unit to switch between connected source equipments. One of the two RCA inputs has a bypassing output that, for example, can be connected to your integrated amplifier for flexible system-up.
| Type || |
:Vacuum tube output stage Low noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
| Vacuum Tube || :2 (6FQ7 / 6CG7) |
| Frequency Response || :DC to 80,000Hz +0,-3dB |
| High Harmonic Distortion || :0.01% or less (1kHz at 100V r.m.s. ) |
| Gain || :60dB (x1000) |
| Input Terminal || |
:3 ( XLR x 1, RCA x 2) with 1 RCA parallel out
| Rated Input Level || :200mV / 100V Outputs |
| Max. Input Level || :30V (at minimum volume level) |
| Input Impedance || :50KΩ(RCA), 100kΩ (XLR) |
| Max. Output Voltage || :300V r.m.s. (1kHz) |
| Standard Bias Voltage || :PRO 580V x 2 |
| Power Voltage Frequency || :117V (50Hz / 60Hz) |
| Power Consumption || :49W |
| Temperature & Humidity || :0 to 35ºC / 90% max. without condensation |
| Dimensions || :7.7 (W) x 4.1 (H) x 15 (D) in |
| Weight || :7.5lbs |
| Color || :Silver |
Specifications and appearance are subject to change for improvement.
